Quick Disconnects Couplers

OPW offer a comprehensive line of quick disconnect products in a wide variety of sizes and configurations.

Kamlok is the world’s most popular cam and groove connector and has set the industry standard for safety and ease of use.

Autolok quick disconnects utilise a self-locking system to provide an added level of safety over the Kamlok.

Both Autolok and Kamlok offer the exclusive Twin-Kam feature – a patented system that holds the adaptor more securely for increased protection against accidental release. These popular couplers and adapters are the safest, sturdiest and quickest coupler systems on the market.

Kamlok

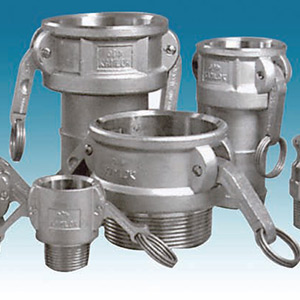

27aOPW Kamlok Quick Disconnects are the industry standard in cam and groove couplers for safety and ease of use. All OPW Kamloks feature the exclusive Twin-Kam arm design to help prevent accidental release and Spring-Rings to ensure proper position of finger rings for ease of operation.



Specs and Features:

Sizes ¾”, 1”, 1½”, 2”, 3” and 4”
Design Pressure 18 bar (260 psi)
Operating Temperatures -40 to +195 deg C
Materials available Stainless Steel
End Connections Hose Shank
  FNPT
  MNPT
  ANSI 150
Seal Materials Buna-N
  EPDM
  Neoprene
  White Neoprene
  PTFE
  Fluorocarbon
  Others seal materials on request
 Features

  • Cam and Groove Design – Provides for reliable, smooth operation in 360° orientation.



  • Exclusive Twin-Kam™ Arms – Provides detent position that helps prevent unintentional arm release beyond 45°.



  • Guaranteed For Life (GFL™) Arms – if an arm breaks, it is replaced FREE.



  • Spring-Ring™ Finger Rings – Rings will not get trapped under the arms with this patented feature. Opening and closing is quick and easy every time.



Autolok

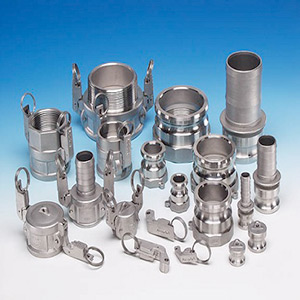

26aAutolok by OPW represents the most significant development in quick-disconnect cam and groove coupling design. It utilises a patented locking arm design that ensures the arms are locked automatically when closed. Opening is a simple matter of tugging the finger rings™, eliminating the use of clips, pins or buttons.

Autolok is recognised as the industry’s safest and sturdiest cam and groove coupling system and only the original Autolok quick coupler comes with patented smooth-action arms to ensure hassle free operation.

Specs and Features:



Sizes ½”, ¾”, 1”, 1 ¼”, 1½”, 2”, 2 ½”, 3” and 4”
Design Pressure 18 bar (260 psi)
Operating Temperatures -40 to +195 deg C
Materials available Stainless Steel
End Connections Hose Shank
  FNPT
  MNPT
  ANSI 150
Seal Materials Buna-N
  EPDM
  Neoprene
  White Neoprene
  PTFE
  Fluorocarbon
  Others seal materials on request
 Features

  • Autolok® Patented Arms – Close just like a regular quick coupler but then lock themselves automatically.
  • Guaranteed For Life (GFL™) Arms – if an arm breaks, it is replaced FREE.
  • Spring-Ring™ Finger Rings – Rings will not get trapped under the arms with this patented feature. Opening and closing is quick and easy every time.
