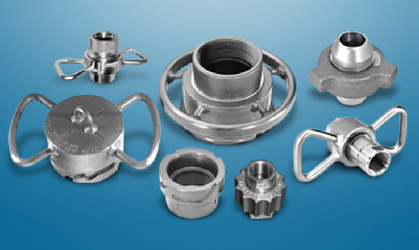

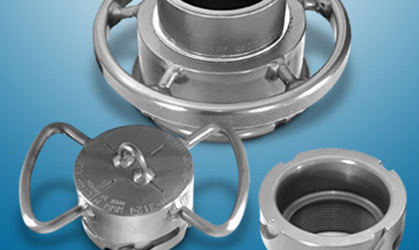

HILTAP Fittings

For the Toughest High Low Temperature and Pressure Applications

OPW’s HILTAP™ series features innovative couplings for high and low pressures as well as temperatures. For over a decade, the HILTAP™ and RapidLOK family of products have served global industries, providing safe transfer solutions for some of the most difficult and demanding liquid applications.

This all-purpose, high-performance quick coupling offers a non-restrictive flow with no variation in pipe diameter when required and conditions allow.

The reusable sealing components are made of different metals that have their own unique hardness and thermal properties, so as to further enhance the seal as temperature changes are encountered.

The sleeve retaining ring ensures safe venting at any residual pressure. The HILTAP™ Brand offers front line solutions and allows design engineers to specify safe and environmentally responsible connections.

Specs and Features:

Sizes ¼”, ½”, ¾”, 1”, 1 ¼”, 1½”, 2”, 2 ½”, 3”, 4” and 6”
Materials available Stainless Steel
  Carbon Steel
  Aluminium
End Connections NPT
  Butt Weld
  Socket Weld
  Hose Barb
  Sanitary Fitting
  Special Bayonet
Seal Materials Viton 75D
  Others seal materials on request
 Features

  • Rapid Engagement – ¼ turn on and off
  • Low Pressure or Vacuum locking
  • Safely vents residual pressure
  • Metal-to-metal wedge seal design for repeated use
  • Leak-proof operation
  • Smooth bore – ideal for pigging
  • Pressure Rating equivalent to ANSI 300
  • Optional Snap-in customised handles for tight spots
