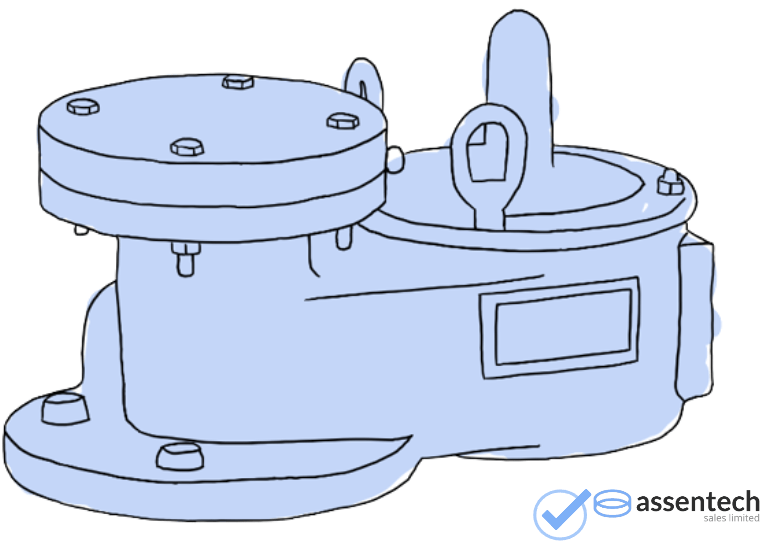

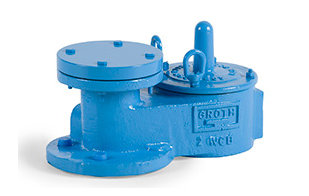

Vacuum Relief Valves (VRV)

Vacuum Relief Valves are integral components in a variety of tank systems, ensuring both functionality and safety in different operational conditions. These devices allow a tank to “breathe in,” or vent, during critical operations such as emptying. The process is vital in maintaining internal pressure at safe levels, preventing potential damage to the tank structure and mitigating the risk of operational failure. Moreover, Vacuum Relief Valves also come into action when thermal effects necessitate pressure adjustment within the tank. Through this dual functionality, these valves contribute significantly to the longevity and reliability of tank systems, providing a safeguard against unwanted pressure changes that could otherwise compromise both the system’s integrity and the safety of those operating it

Pressure Vacuum Relief Valve Sizing program

Sizing Programme for Breather Valves available on request



Sizing Programme for Breather Valves available on request
Should you need quick turnaround times, feel free to reach out and Contact Us to discuss the various solutions we offer

Types of Vacuum Relief Valves we Supply

  • Weight Loaded VRV:  These vents utilise a weight to keep the valve closed. When the system vacuum surpasses the weight’s opposing force, the valve opens. While less common than spring-operated vents, weight-operated vents are valuable in low-vacuum applications where precision is critical.
  • Spring-Operated VRV: Spring-operated valves rely on a spring mechanism to keep the valve closed under normal operating conditions. When the system vacuum exceeds the force exerted by the spring, the valve opens to discharge the excess vacuum. These vents are notable for their simplicity, cost-effectiveness, and suitability for a wide range of vacuum settings.
  • Pilot Operated VRV:  These vents use a secondary pressure (pilot) valve to control the operation of the main relief valve. When the vacuum in the system exceeds the set limit, the pilot valve opens, allowing the main valve to relieve the vacuum. This type of vent is known for its accuracy and reliability, making it suitable for high-vacuum applications.
Vacuum Relief Valves (VRV)
Vacuum Relief Valves (VRV)
  • Flanged outlet connection enables redirection of escaping vapours, preventing direct release into the atmosphere
  • Reliable and repeatable performance ensured through peripheral and central seat guides
  • Extended service life with minimal leakage thanks to a wide seat and air-cushion seal
  • Increased operational reliability due to self-draining housing body and drip rings that protect seating surfaces from condensation and freezing
  • Standard fluoropolymer seating diaphragms minimise sticking caused by resinous vapours and atmospheric moisture
  • Size range: 2′′ (DN 50) through 12′′ (DN 300)
  • Material options: Aluminium, carbon steel, stainless steel, fibreglass, and more
  • Pressure tolerance: 0.5 osig to 15 psig (2.15 mbarg to 1.03 barg)
  • Certifications: ATEX and PED Approval
Reliable and consistent performance is assured by peripheral and central seat guides
  • Flanged outlet connection enables redirection of escaping vapours, preventing direct release into the atmosphere
  • Reliable and repeatable performance ensured through peripheral and central seat guides
  • Extended service life with minimal leakage thanks to a wide seat and air-cushion seal
  • Increased operational reliability due to self-draining housing body and drip rings that protect seating surfaces from condensation and freezing
  • Standard fluoropolymer seating diaphragms minimise sticking caused by resinous vapours and atmospheric moisture
  • Size range: 2′′ (DN 50) through 12′′ (DN 300)
  • Material options: Aluminium, carbon steel, stainless steel, fibreglass, and more
  • Pressure tolerance: 0.5 osig to 15 psig (2.15 mbarg to 1.03 barg)
  • Certifications: ATEX and PED Approval
Servicing Breather Valves with our Vent-Less Test Bench
API 2000

Our Pressure Vacuum Relief Valves are not just reliable and efficient, but they also meet the rigorous safety and performance requirements of international standards like API 2000 and ISO 28300.

API 2000 & ISO28300 set the globally recognised standards for the design, installation, and maintenance of venting devices in petroleum industry tanks.

One of the defining features of our Pressure Relief Valves is their leak-tightness. The importance of a leak-tight valve cannot be overstated in industries where even the smallest leak can lead to significant product loss, potential harm to personnel, and environmental pollution. All our valves are supplied with individual leakage and calibration certificates, as per ISO 28300 & API 2000 standards. We believe it’s important to note that while some manufacturers only supply calibration certificates, neglecting leakage tests, we ensure compliance with the aforementioned standards. Each valve we supply is tested meticulously, a process typically requiring at least an hour at the factory. This critical quality assurance step is included in our base price, reflecting our commitment to safety and quality.

Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.

Get in Touch

We invite you to book a complimentary 1-hour online session with our experts. This online consultation will provide you and your team an opportunity to delve into critical areas such as Tank Venting, Valve Testing, and an in-depth understanding of API 2000 and ISO 28300 standards. Our specialists are ready to introduce you to the most advanced techniques and best practices available in the industry. Please don’t hesitate to reach out to us, contact us today to schedule your session.

Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.

Documentation List

Individual documentation can be requested from the following list as applicable

  • Certificate of Conformity
  • Certified capacity flow curves
  • ATEX Certification
  • Material test Certificate
  • Manufacturing Record Book
  • Certificate of Origin
  • Positive Material Procedures and Test Reports
  • GA Drawings
  • Hydrostatic and Pneumatic Test
  • Pressure Test Reports and Certification
  • Surface Preparation and Coating Reports
  • Installation, Operation and Maintenance Manual
  • Shipping and Maintenance, Preservation Procedures
  • Inspection and Test Plan
Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.
Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.

Documentation List

Individual documentation can be requested from the following list as applicable

  • Certificate of Conformity
  • Certified capacity flow curves
  • ATEX Certification
  • Material test Certificate
  • Manufacturing Record Book
  • Certificate of Origin
  • Positive Material Procedures and Test Reports
  • GA Drawings
  • Hydrostatic and Pneumatic Test
  • Pressure Test Reports and Certification
  • Surface Preparation and Coating Reports
  • Installation, Operation and Maintenance Manual
  • Shipping and Maintenance, Preservation Procedures
  • Inspection and Test Plan
Vacuum Relief Valves
Vent-Less Certified

Certification and Compliance

Assentech provides comprehensive certification and compliance documents for all our products. These include:

  • Valve Calibration / SetPoint Certification
  • Individual Vent Leakage Certificates in accordance with ISO28300 or API2000 on both vacuum and pressure ports.

This rigorous certification ensures maximum sealing and no emission loss, leading to increased confidence from regulators, the public, and environmental bodies.

Evidence Duty of Care

Assentech is dedicated to providing high-quality after-sales support to our customers. We stand out as the only authorised repair and service centre equipped with the necessary technology, certification, and knowledge to detect leakage, test performance, and maintain your Breather Valves to keep you safe and compliant. With full access to factory spares, all our processes are fully traceable, guaranteeing the best in customer care.

Responsible Procurement

Assentech believes in being fully transparent and accountable in our procurement processes. We provide a full and comprehensive range of industry-specific compliance sheets, certificates, and reports available upon request. This ensures our customers in the tank storage industry and beyond have full insight into the documentation that supports their choice of products and services.

Visit our Maintenance & Inspection page below to explore our innovative solutions for your equipment. Or get in Contact with the team to discuss your organisation's needs.

Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.
Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.

Venting Equipment Product Range

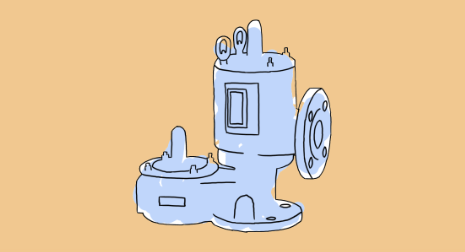

Breather Valves

Breather Valves (PVRV)

Read more

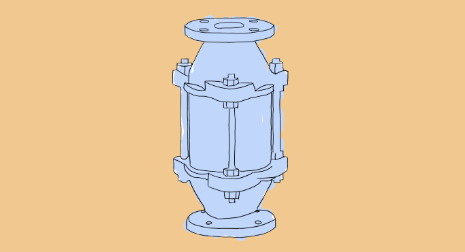

flame arrestors

Flame Arresters

Read more

flame arrestors

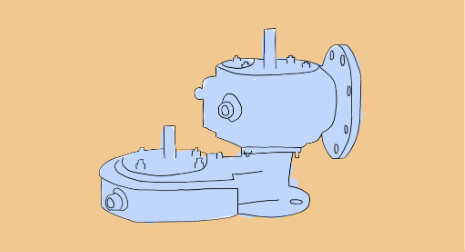

Steam Jacketed Valves

Read more

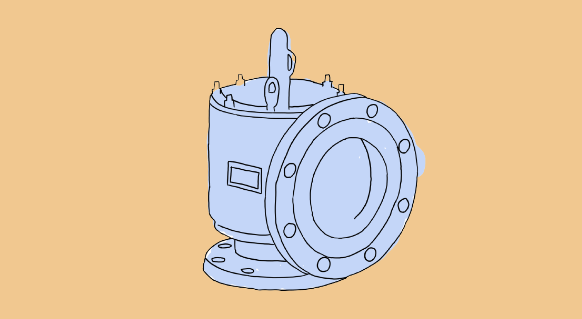

Pressure Relief Valves (PRV)

Pressure Relief Valves (PRV)

Read more

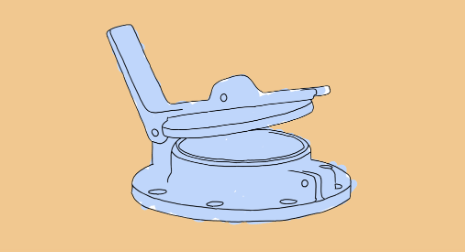

Gauge Hatch

Gauge Hatch

Read more

Couplers

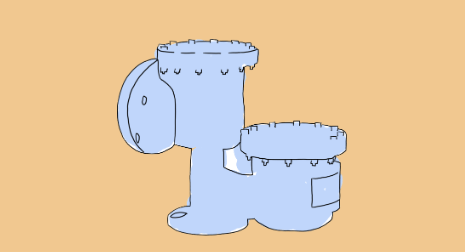

Fibreglass Relief Valves

Read more

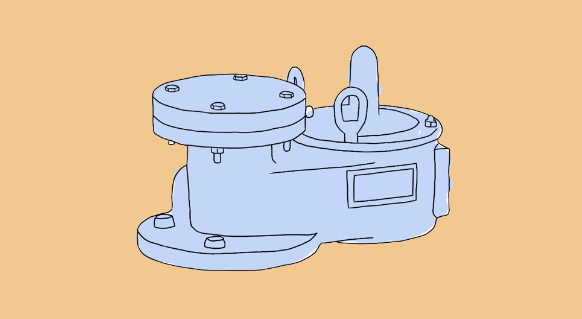

Vacuum Relief Valves (VRV)

Vacuum Relief Valves (VRV)

Read more

Couplers

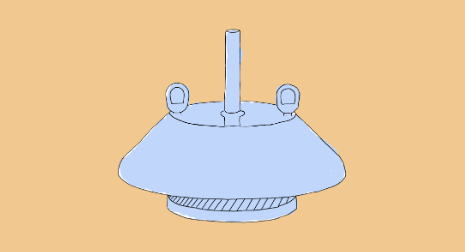

Free Vents

Read more

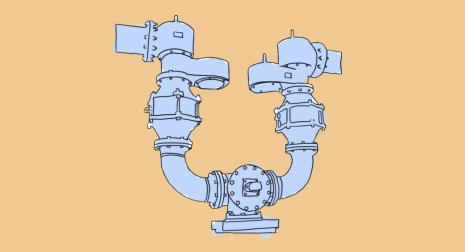

Safety Diverter Ball Valve

Safety Diverter Ball Valve

Read more

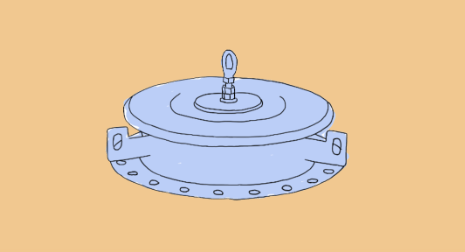

emergency-relief-vents

Emergency Relief Valves

Read more

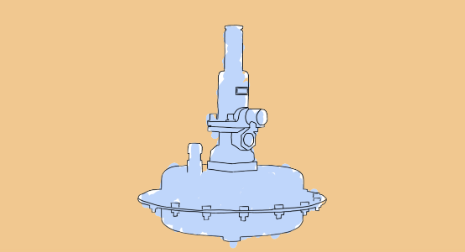

Blanket Gas Regulators
