Pressure Relief Valves

Pressure Relief Valves allow a tank to vent (breathe out) during filling, emptying and when thermal effects require.

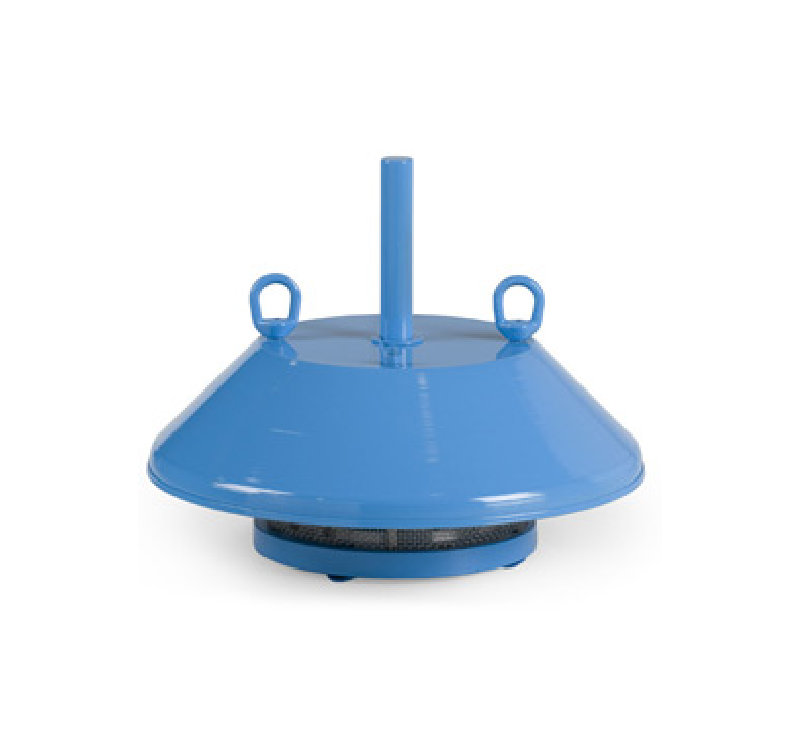

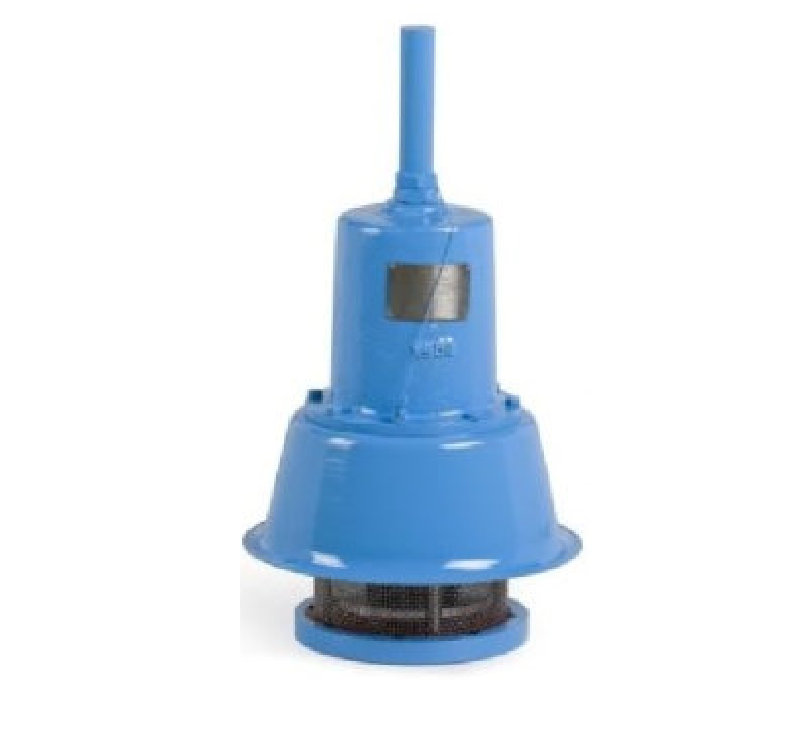

Spring/Weight Operated

73Key Features of the Groth Pressure Relief Valve include;

 Key Features
  • Market leading sealing performance - API2000 states that a valve should hold 75% of its set point at constant flow of 15l / hour – Groth’s production standard is 90% in models up to and including 6”
  • Self Draining Pallets prevent build up of water and potential to freeze shut/open
  • Air cushion seat design creates superior seal and is less prone to sticking than o-ring type seals
  • There are no elastomers in Groth valves as they break down over time in common applications



As with all Groth equipment, their Pressure Relief Valves are manufactured to the highest standards and offer market leading performance and longevity.

Groth Pressure Relief valves come with a range of standard and custom options as follows;

Models 1200 Series
  2300 Series
Sizes 2” to 12”
Pressure Settings 2.1 mbar (0.002 bar) to 1030 mbar (1.03 bar)
Options Free Venting outlet
  Pipe-away outlet
  Flame Arrester
  Steam Jacket
Operation Weight Loaded
  Spring Loaded
Materials of Construction Aluminium
  Carbon Steel
  Stainless Steel
  Derakane (FRP)
  Furan (FRP)
  Exotics on request
Approvals ATEX



Pilot-Operated

71Pilot operated pressure relief valves allow a tank to vent (breathe out) during filling and when thermal effects require, but with much higher pressure settings than a weighted or spring loaded valve.

Key Features of the Groth Pilot Operated Pressure Relief Valve include;



Key Features
  • High Flow Capacity
  • Bubble tight to set pressure
  • Fully open at less than 10% above set pressure
  • Inherent backflow prevention
  • Easily adjustable blowdown
  • Film design seat meets EPA method 21
  • Full pipe bore seat nozzle



As with all Groth equipment, their Pilot Operated Pressure Relief valves are manufactured to the highest standards and offer market leading performance and longevity.

Groth Pilot Operated Pressure Relief valves come with a range of standard and custom options as follows;



Models 1600 Series
Sizes 2” to 12”
Pressure Settings 12.9 mbar (0.012 bar) to 1030 mbar (1.03 bar)
Max. Operating Temp. 150 degC
Min. Operating Temp. 195 degC
Operation Pilot Operated
Mounting Orientation Side Mount
Materials of Construction Aluminium
  Carbon Steel
  Stainless Steel
  Multiple Pilot Valve Material Options
  Specials upon request
Approvals ATEX
