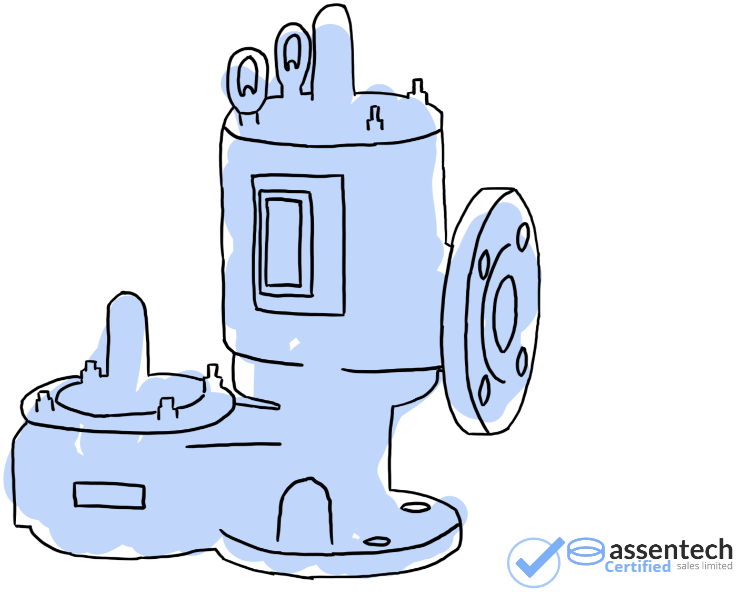

Breather valves (pressure vacuum relief valves)

Breather Valves (Pressure & Vacuum Relief Valves)

Pressure Vacuum Relief Valves, also known as Storage Tank Breather Valves – a critical safety devices for storage tanks in industries worldwide. A Pressure Vacuum Relief Valve plays a fundamental role in controlling the pressure and vacuum levels in a storage tank, thereby preventing the catastrophic implications of a tank over-pressurisation or vacuum collapse. Additionally, these valves prevent evaporation losses, minimise product contamination, and protect the environment from hazardous vapour emissions.

The immense importance of these valves means there is no room for compromise. And that’s where our commitment to quality comes in.

Pressure Vacuum Relief Valve Sizing program

Sizing Programme for Breather Valves available on request

Should you need quick turnaround times, feel free to reach out and Contact Us to discuss the various solutions we offer

Types of Pressure Vacuum Relief Valves we Supply

Weight Loaded PVRV: These vents utilise a weight to keep the valve closed. When the system pressure surpasses the weight’s opposing force, the valve opens. While less common than spring-operated vents, weight-operated vents are valuable in low-pressure applications where precision is critical.
Spring-Operated PVRV: Spring-operated valves rely on a spring mechanism to keep the valve closed under normal operating conditions. When the system pressure exceeds the force exerted by the spring, the valve opens to discharge the excess pressure. These vents are notable for their simplicity, cost-effectiveness, and suitability for a wide range of pressure settings.
Pilot Operated PVRV: These vents use a secondary pressure (pilot) valve to control the operation of the main relief valve. When the pressure in the system exceeds the set limit, the pilot valve opens, allowing the main valve to relieve the overpressure. This type of vent is known for its accuracy and reliability, making it suitable for high-pressure applications.

Reliable and consistent performance is assured by peripheral and central seat guides

Reliable and consistent performance is assured by peripheral and central seat guides
A wide seat and air-cushion seal ensure leakage is minimised, even after extended valve use
The valve’s body has self-draining capabilities, with drip rings to shield seating surfaces from condensation and freezing, enhancing operational dependability
Fluoropolymer seating diaphragms are standard to lessen stickiness from resinous vapours and atmospheric moisture
Full calibration documentation traceability through casting heat numbers on the body
Body material choices are available to cater to all applications, featuring a premium casting design to eliminate all leakage paths
Weight package of quality material, with full ISO 9001 traceability through the supply chain, is uniformly shaped for even distribution, with material options available for optimal compatibility
Superior material diaphragms, such as FEP Teflon, are used to ensure sealing capability, longevity, and reliability, with full compatibility with stored media and an ethically sourced and traceable supply chain in adherence to ISO 9001
Air-cushioned sealing technology is used in the seat ring, which is manufactured from durable, corrosion-resistant materials like SS 316. This ensures resistance to adverse weather conditions and maximises the lifespan
Fasteners are made of stainless steel for long-lasting reliability and sealing, with cross-drilled nuts for lock wiring
Identification includes an ISO and API-compliant nameplate featuring flow capacity, tag, serial number, and set point
Access to the manufacturer’s sizing program to verify vent size, with flow test results generated on an API/ISO-approved flow test rig. A full range of sizes and connections are available to meet various needs.

Features

Reliable and consistent performance is assured by peripheral and central seat guides
A wide seat and air-cushion seal ensure leakage is minimised, even after extended valve use
The valve’s body has self-draining capabilities, with drip rings to shield seating surfaces from condensation and freezing, enhancing operational dependability
Fluoropolymer seating diaphragms are standard to lessen stickiness from resinous vapours and atmospheric moisture
Full calibration documentation traceability through casting heat numbers on the body
Body material choices are available to cater to all applications, featuring a premium casting design to eliminate all leakage paths
Weight package of quality material, with full ISO 9001 traceability through the supply chain, is uniformly shaped for even distribution, with material options available for optimal compatibility
Superior material diaphragms, such as FEP Teflon, are used to ensure sealing capability, longevity, and reliability, with full compatibility with stored media and an ethically sourced and traceable supply chain in adherence to ISO 9001
Air-cushioned sealing technology is used in the seat ring, which is manufactured from durable, corrosion-resistant materials like SS 316. This ensures resistance to adverse weather conditions and maximises the lifespan
Fasteners are made of stainless steel for long-lasting reliability and sealing, with cross-drilled nuts for lock wiring
Identification includes an ISO and API-compliant nameplate featuring flow capacity, tag, serial number, and set point
Access to the manufacturer’s sizing program to verify vent size, with flow test results generated on an API/ISO-approved flow test rig. A full range of sizes and connections are available to meet various needs.

Servicing Breather Valves with our Vent-Less Test Bench

Compliance with International Standards

Our Pressure Vacuum Relief Valves are not just reliable and efficient, but they also meet the rigorous safety and performance requirements of international standards like API 2000 and ISO 28300.

API 2000 & ISO28300 set the globally recognised standards for the design, installation, and maintenance of venting devices in petroleum industry tanks.

One of the defining features of our Pressure Relief Valves is their leak-tightness. The importance of a leak-tight valve cannot be overstated in industries where even the smallest leak can lead to significant product loss, potential harm to personnel, and environmental pollution. All our valves are supplied with individual leakage and calibration certificates, as per ISO 28300 & API 2000 standards. We believe it’s important to note that while some manufacturers only supply calibration certificates, neglecting leakage tests, we ensure compliance with the aforementioned standards. Each valve we supply is tested meticulously, a process typically requiring at least an hour at the factory. This critical quality assurance step is included in our base price, reflecting our commitment to safety and quality.

Get in Touch

We invite you to book a complimentary 1-hour online session with our experts. This online consultation will provide you and your team an opportunity to delve into critical areas such as Tank Venting, Valve Testing, and an in-depth understanding of API 2000 and ISO 28300 standards. Our specialists are ready to introduce you to the most advanced techniques and best practices available in the industry. Please don’t hesitate to reach out to us, contact us today to schedule your session.

Nestled in the South West, UK. Our headquarters is home to a passionate and enthusiastic team, that wants to support the industry for a cleaner and safer future.

Get in Touch

We invite you to book a complimentary 1-hour online session with our experts. This online consultation will provide you and your team an opportunity to delve into critical areas such as Tank Venting, Valve Testing, and an in-depth understanding of API 2000 and ISO 28300 standards. Our specialists are ready to introduce you to the most advanced techniques and best practices available in the industry. Please don’t hesitate to reach out to us, contact us today to schedule your session.

Documentation List

Individual documentation can be requested from the following list as applicable

Certificate of Conformity
Certified capacity flow curves
ATEX Certification
Material test Certificate
Manufacturing Record Book
Certificate of Origin
Positive Material Procedures and Test Reports
GA Drawings
Hydrostatic and Pneumatic Test
Pressure Test Reports and Certification
Surface Preparation and Coating Reports
Installation, Operation and Maintenance Manual
Shipping and Maintenance, Preservation Procedures
Inspection and Test Plan

Documentation List

Individual documentation can be requested from the following list as applicable

Certificate of Conformity
Certified capacity flow curves
ATEX Certification
Material test Certificate
Manufacturing Record Book
Certificate of Origin
Positive Material Procedures and Test Reports
GA Drawings
Hydrostatic and Pneumatic Test
Pressure Test Reports and Certification
Surface Preparation and Coating Reports
Installation, Operation and Maintenance Manual
Shipping and Maintenance, Preservation Procedures
Inspection and Test Plan

Certification and Compliance

Assentech provides comprehensive certification and compliance documents for all our products. These include:

Valve Calibration / SetPoint Certification

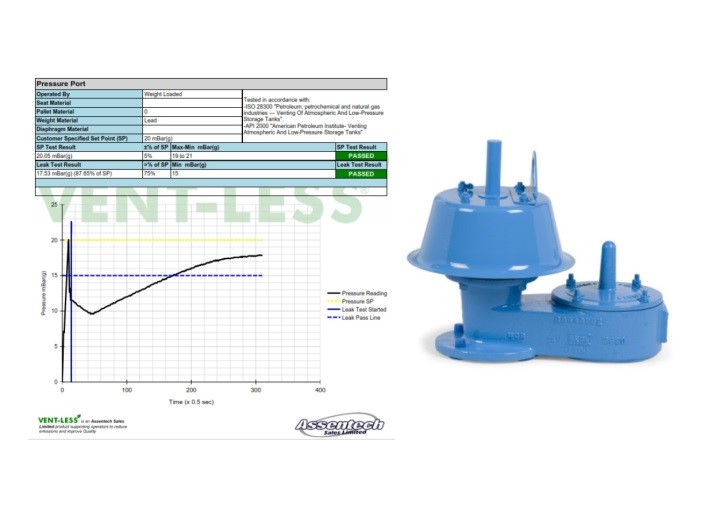

Individual Vent Leakage Certificates in accordance with ISO28300 or API2000 on both vacuum and pressure ports.

This rigorous certification ensures maximum sealing and no emission loss, leading to increased confidence from regulators, the public, and environmental bodies.

Evidence Duty of Care

Assentech is dedicated to providing high-quality after-sales support to our customers. We stand out as the only authorised repair and service centre equipped with the necessary technology, certification, and knowledge to detect leakage, test performance, and maintain your Breather Valves to keep you safe and compliant. With full access to factory spares, all our processes are fully traceable, guaranteeing the best in customer care.

Responsible Procurement

Assentech believes in being fully transparent and accountable in our procurement processes. We provide a full and comprehensive range of industry-specific compliance sheets, certificates, and reports available upon request. This ensures our customers in the tank storage industry and beyond have full insight into the documentation that supports their choice of products and services.

Visit our Maintenance & Inspection page below to explore our innovative solutions for your equipment. Or get in Contact with the team to discuss your organisation's needs.
